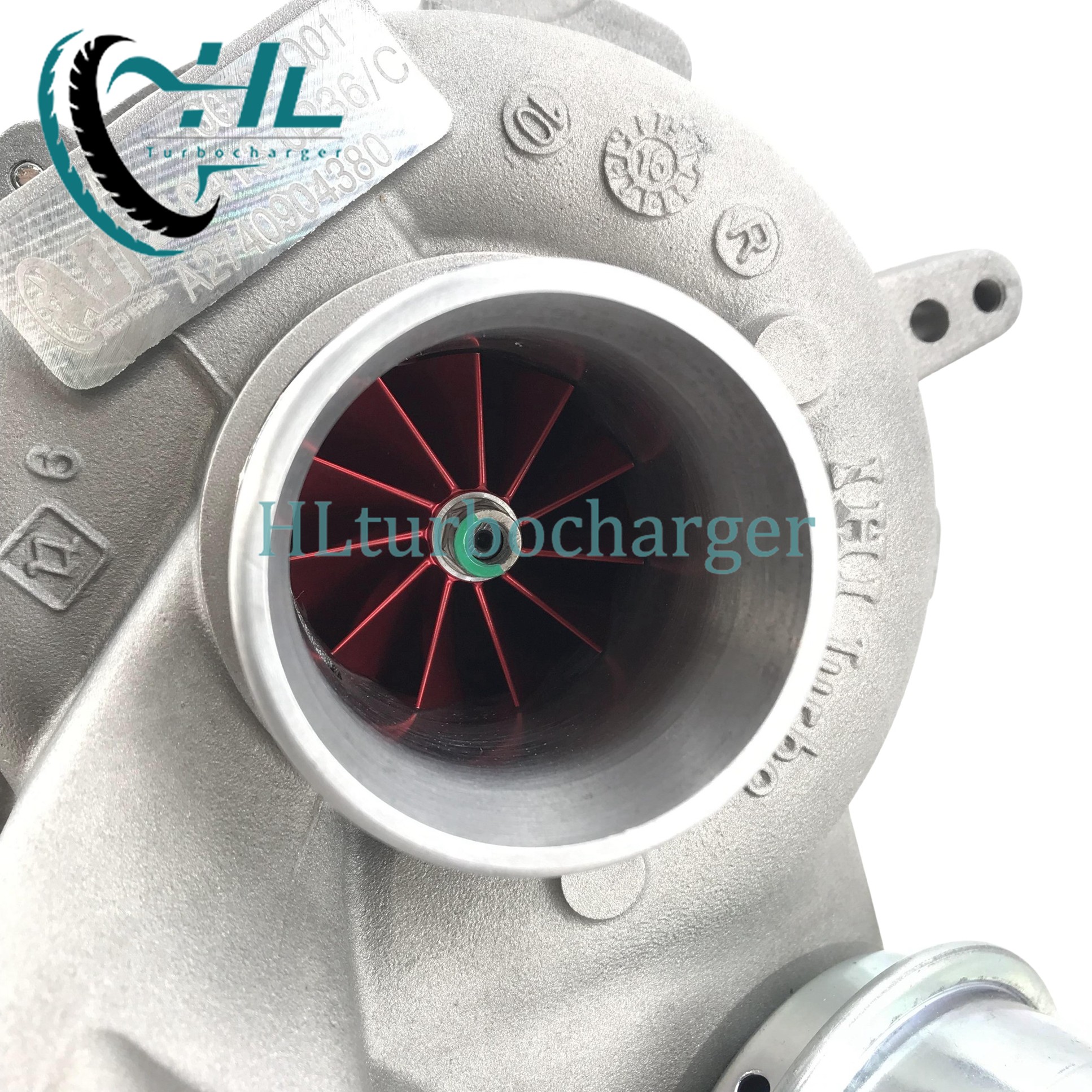

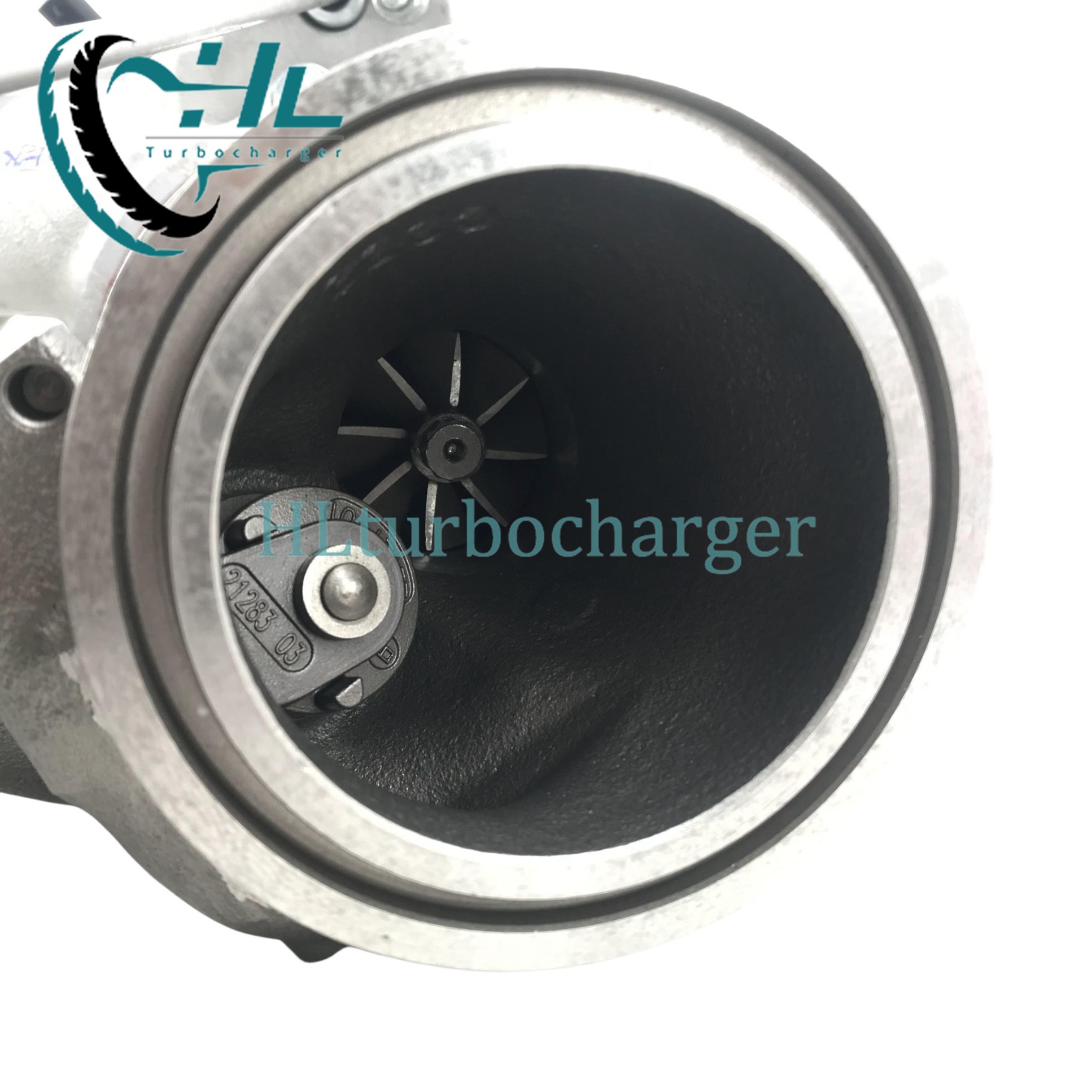

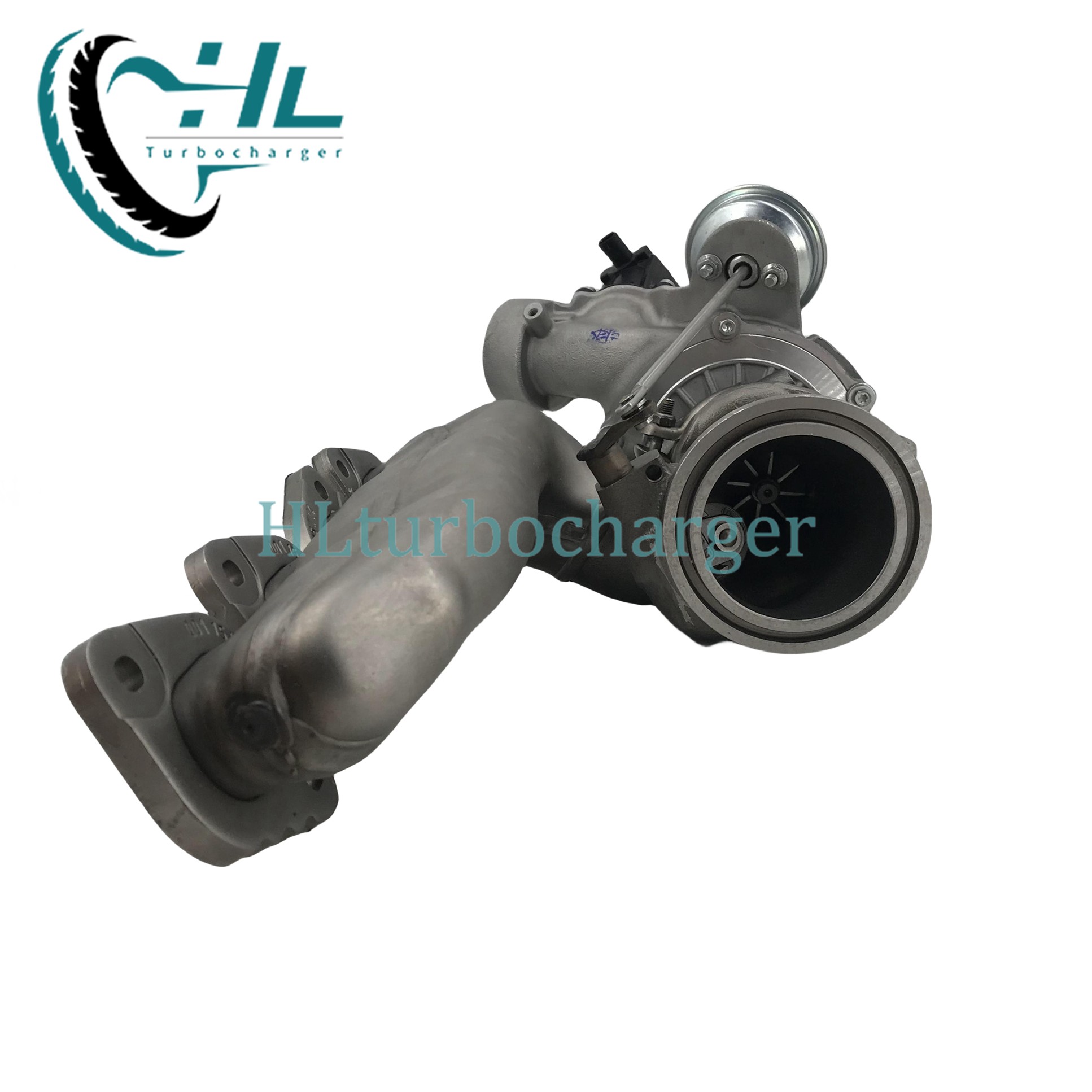

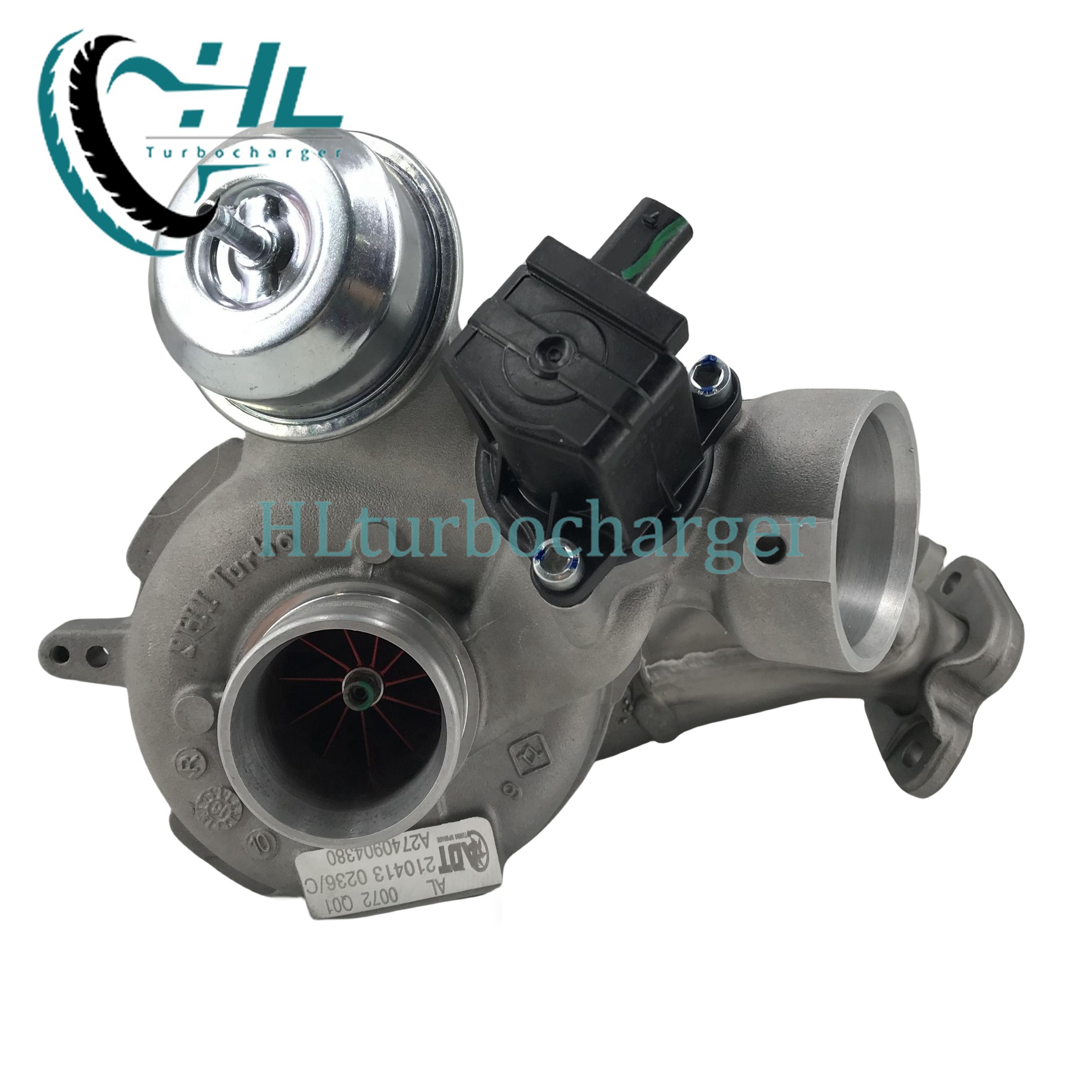

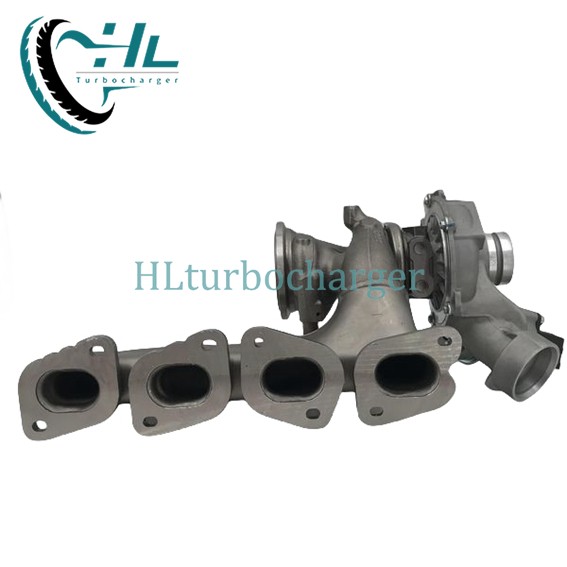

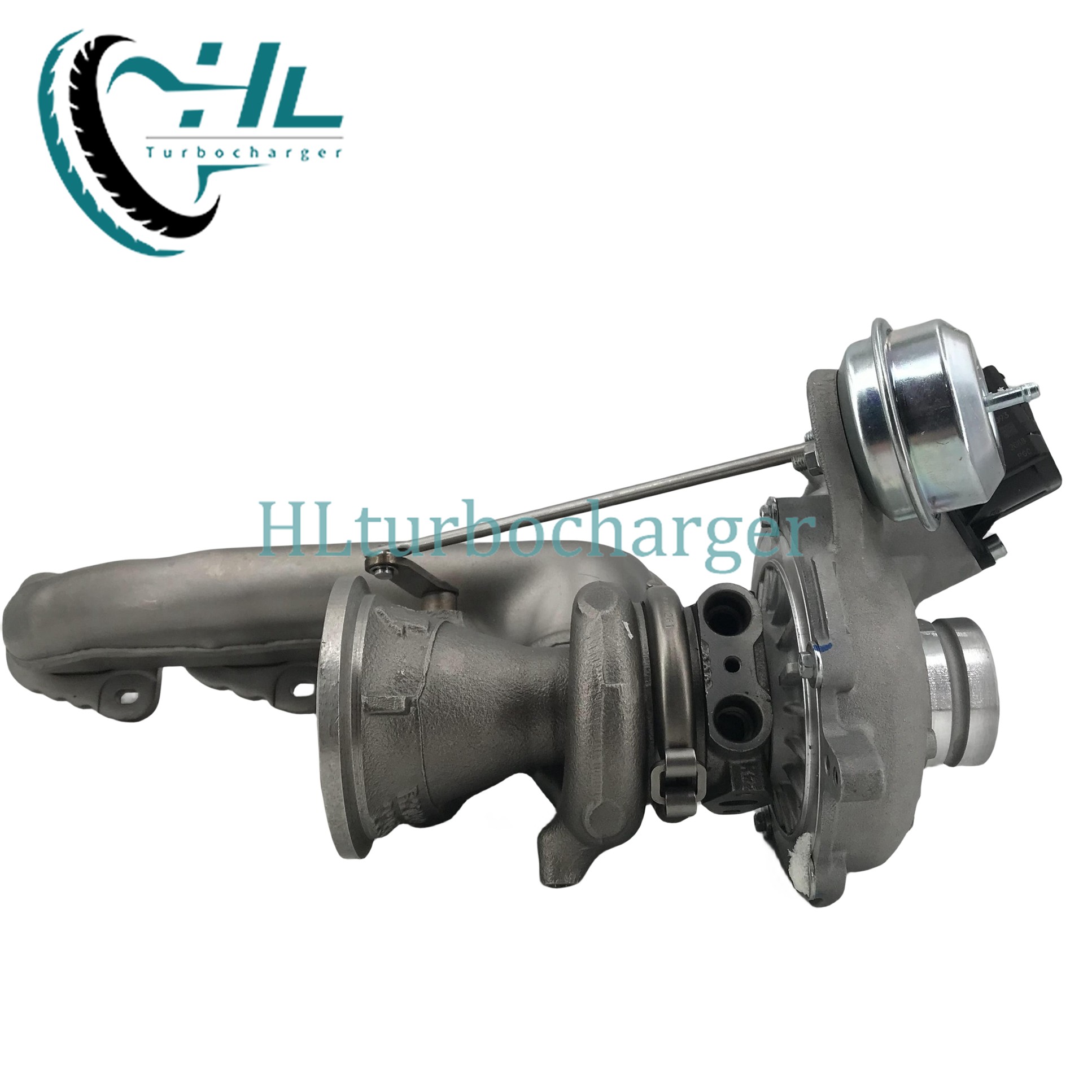

AL0072 Mercedes Benz OM274 Hybrid Turbocharger

OM274 Hybrid Turbocharger

Type 1:

Ceramics Dual Ball Bearing
G25-550 Size

Type 2:

Copper Journal Bearing
CW: 44.4*65.9 mm
TW: 44.7*37.7 mm

• Billet Compressor Wheel
• Larger and Stronger Turbine Wheel
• OEM Housing
• 100% Plug and Play

Name	Bearing	Turbine	Comp.	Size
OM274	Ball Bearing	G25-550	G25-550	CW:48*60mm TW:54*49mm
	Journal Bearing			CW: 44.4*65.9 mm TW: 44.7*37.7 mm

Turbo Part Number:
A2740905980, A2740904380, A2740904080, A2740903580, A2740903480, A2740903300, A2740903280, A2740903180, A2740902480, A2740902380, A2740901980, A2740901680

Application:
Mercedes Benz Car W204 W205 W212 C300 GLC300 2.0T with OM274 / OM274920 Engine
