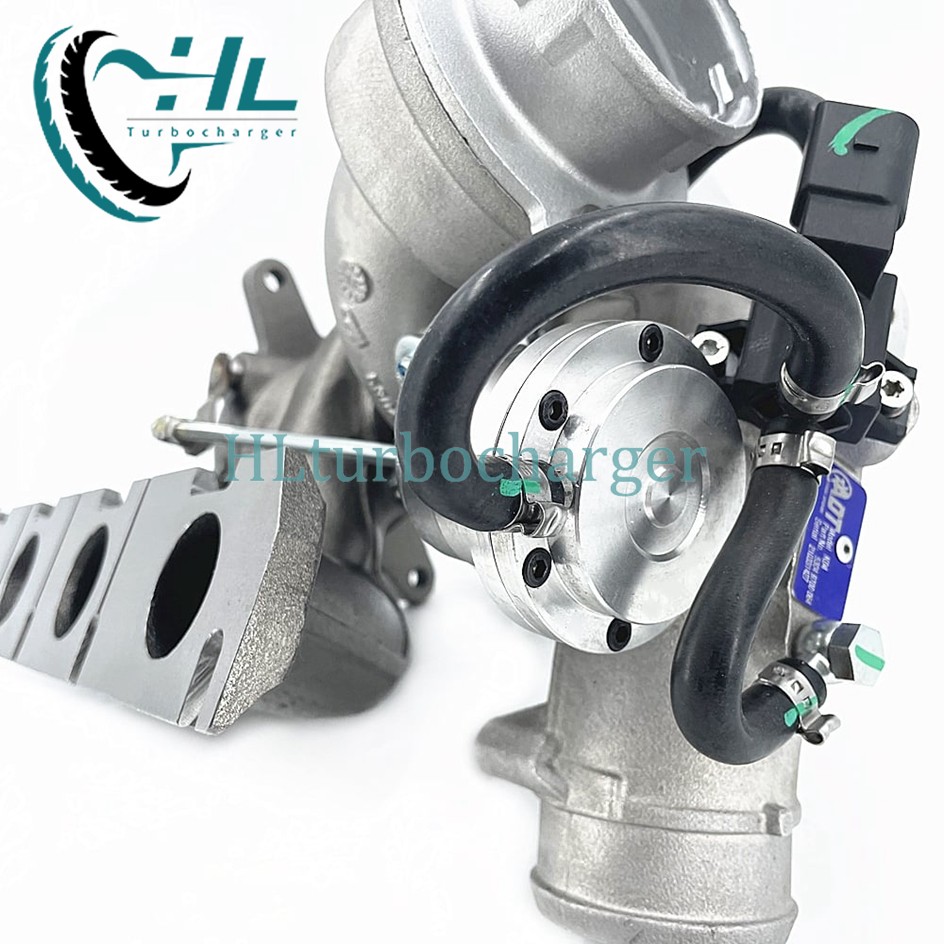

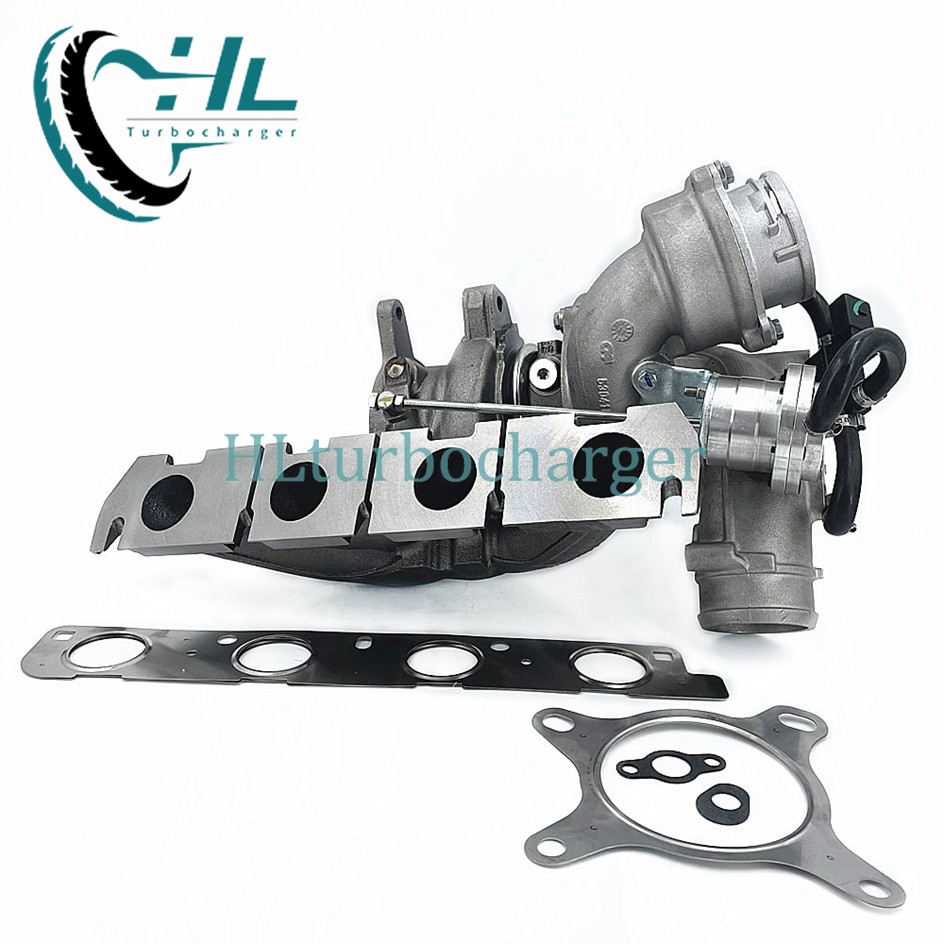

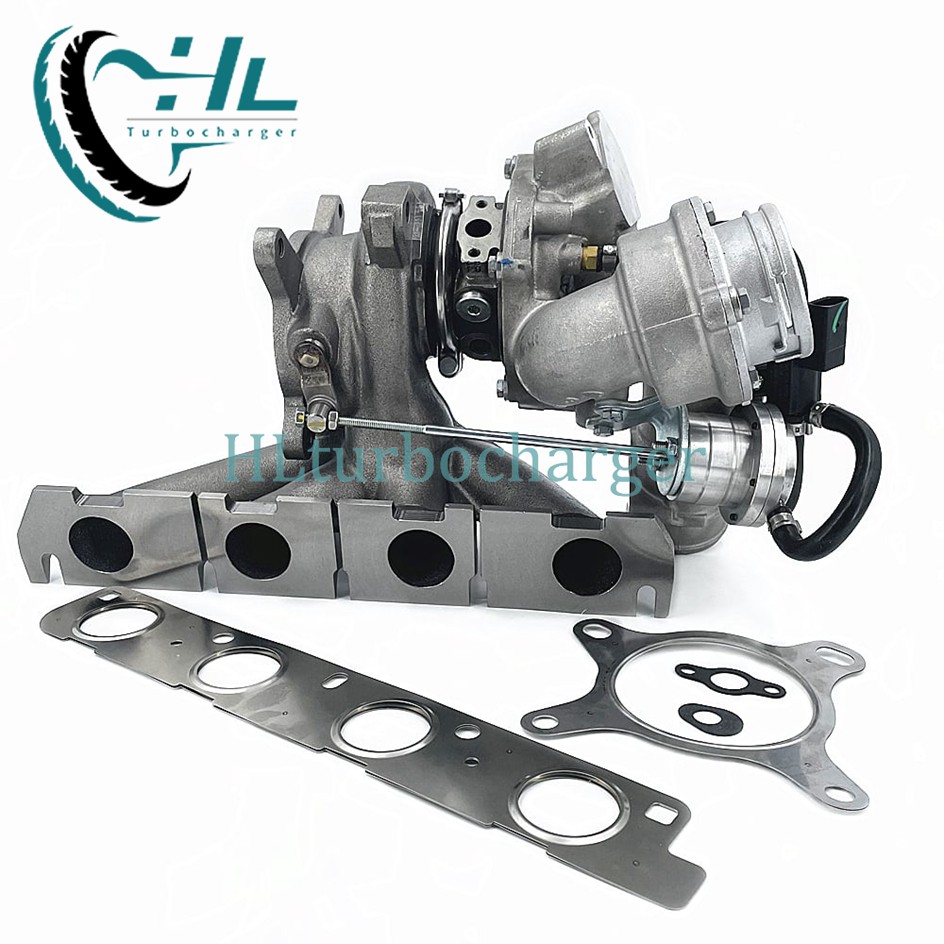

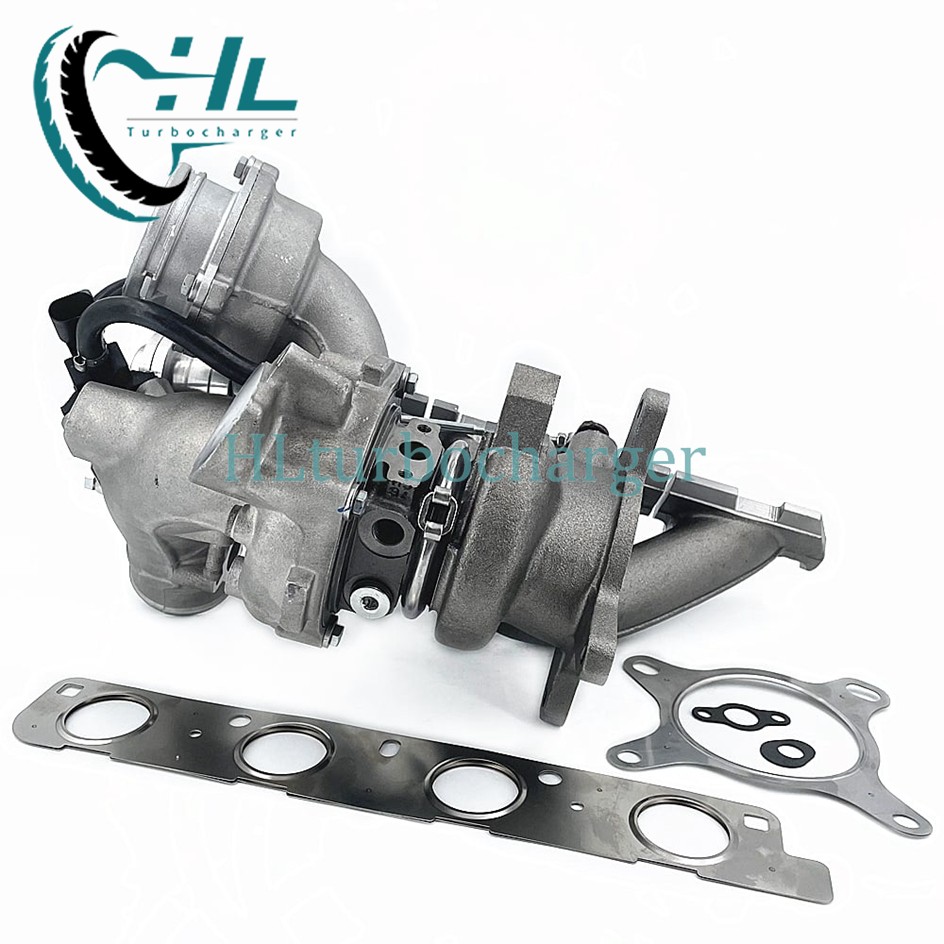

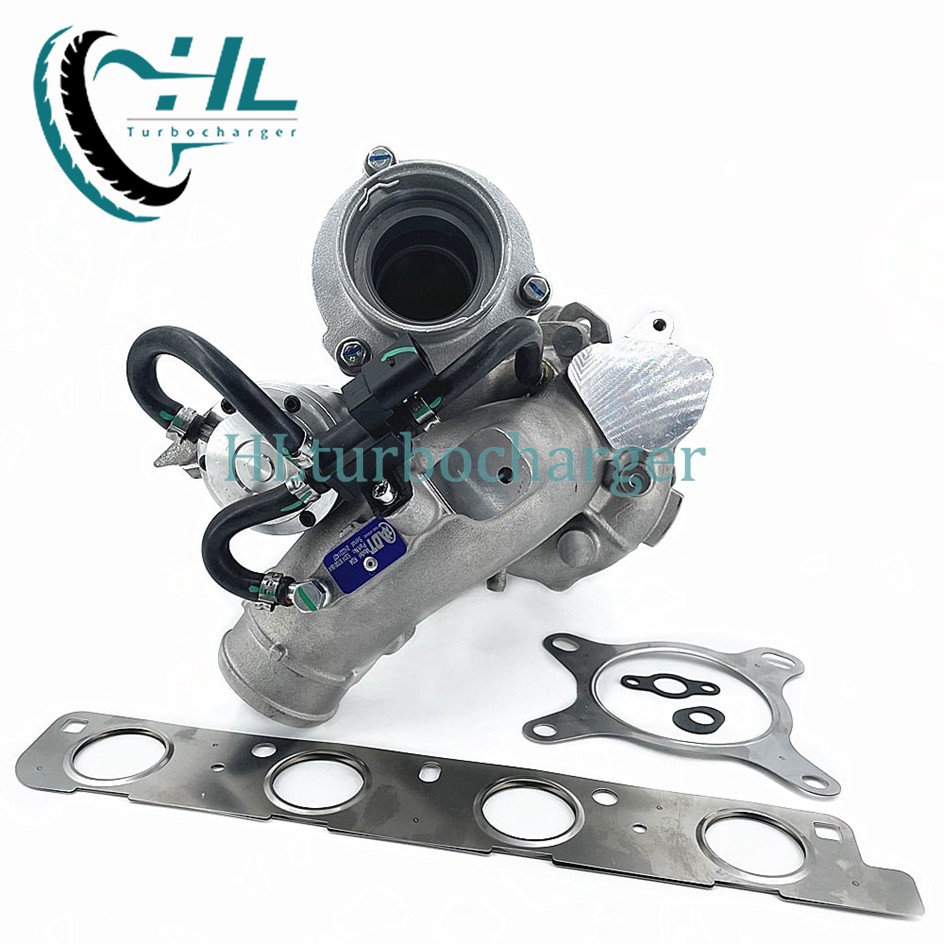

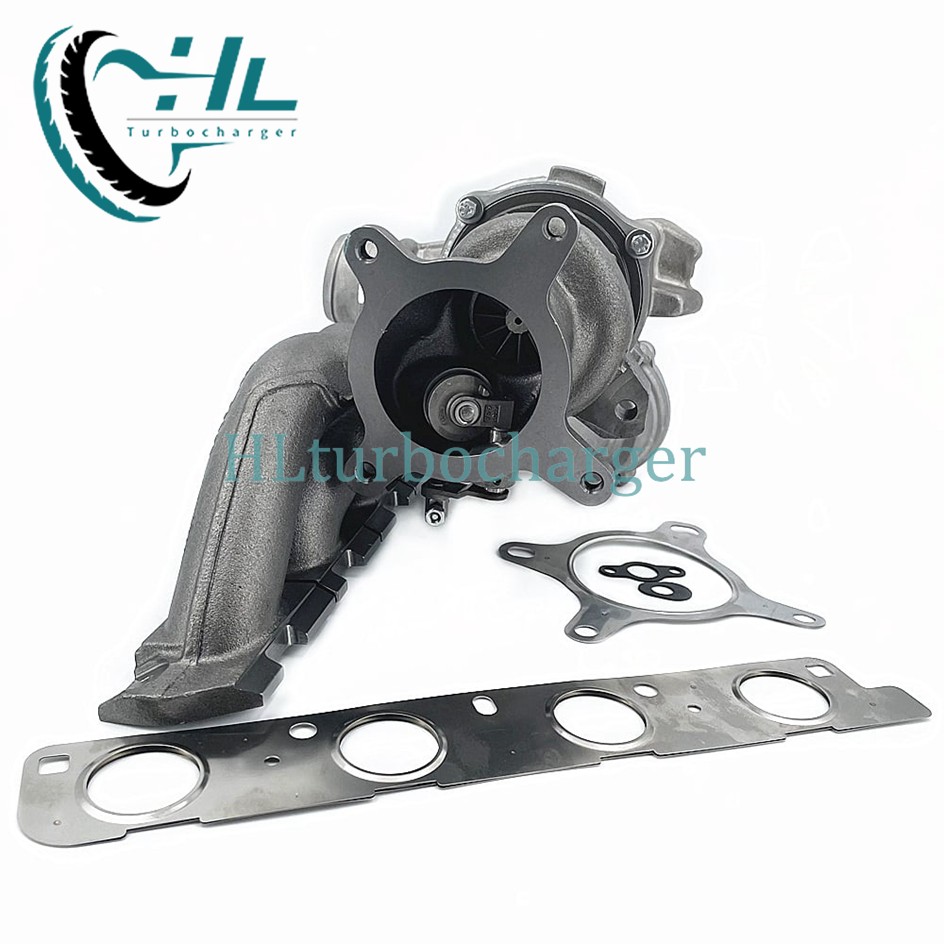

EA888 Gen 2 Hybrid Turbocharger K04-064

K04-0064 Hybrid Turbocharger

• Billet Compressor Wheel
• Larger and Stronger Turbine Wheel
• 100% Plug and Play

Name	Bearing	Turbine	Comp.	Size
EA888--K04-0064	Ball Bearing	GTX2867R	GTX2867R	CW:50*67mm TW:54*47mm
	Ball Bearing	G25-550	G25-550	CW:48*60mm TW:54*49mm
	Journal Bearing			CW:50*67mm TW:54*47mm

Model Name:
K04

Turbo Part Number:
53049880064 , 53049700064

Turbo OEM Number:
06F145702C , 06F145702CX , 06F145702CV

Application:
Audi S1 2.0 TFSI 195 Kw - 265 HP CDLH 2012-
Audi S3 2.0 TFSI (8P/PA) 195 Kw - 265 HP BHZ 2006-
Audi TT S 2.0 TFSI (8J) 200 Kw - 272 HP BHZ 2006-
Seat Leon 2.0 TFSI Cupra 177 Kw - 241 HP BWJ / CDLD 2006-
Volkswagen Golf V 2.0 TFSI 169 Kw - 230 HP BYD 2008-2010
Volkswagen Golf VI 2.0 R 199 Kw - 270 HP CDLF 2009-
Volkswagen Golf VI 2.0 GTI 35 173 Kw - 235 HP CDLG 2011-2012
Volkswagen Scirocco 2.0 R TSI 195 Kw - 265 HP CDLA 2009-2014
